Pre-cut. Pre-fit. Ready to raise.
Heavy post-and-beam pavilion kits in Cypress, Cedar, or Southern Yellow Pine. Trusses arrive fully assembled, lumber pre-fit, hardware included. Erected by your local crew — drastically faster and cheaper than building from scratch.

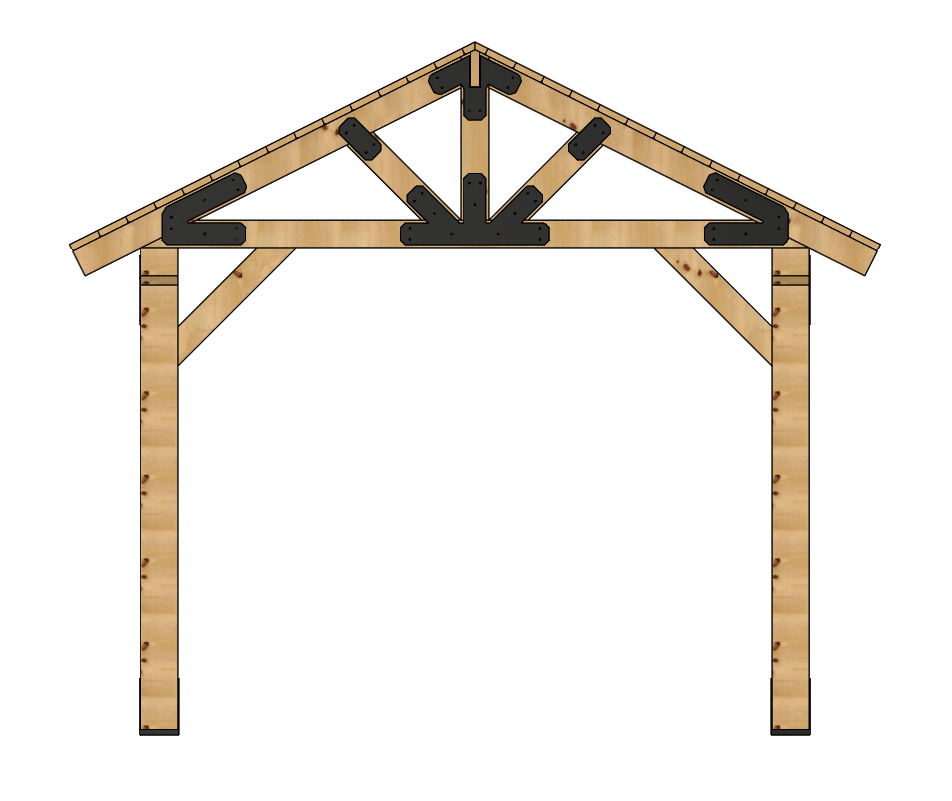

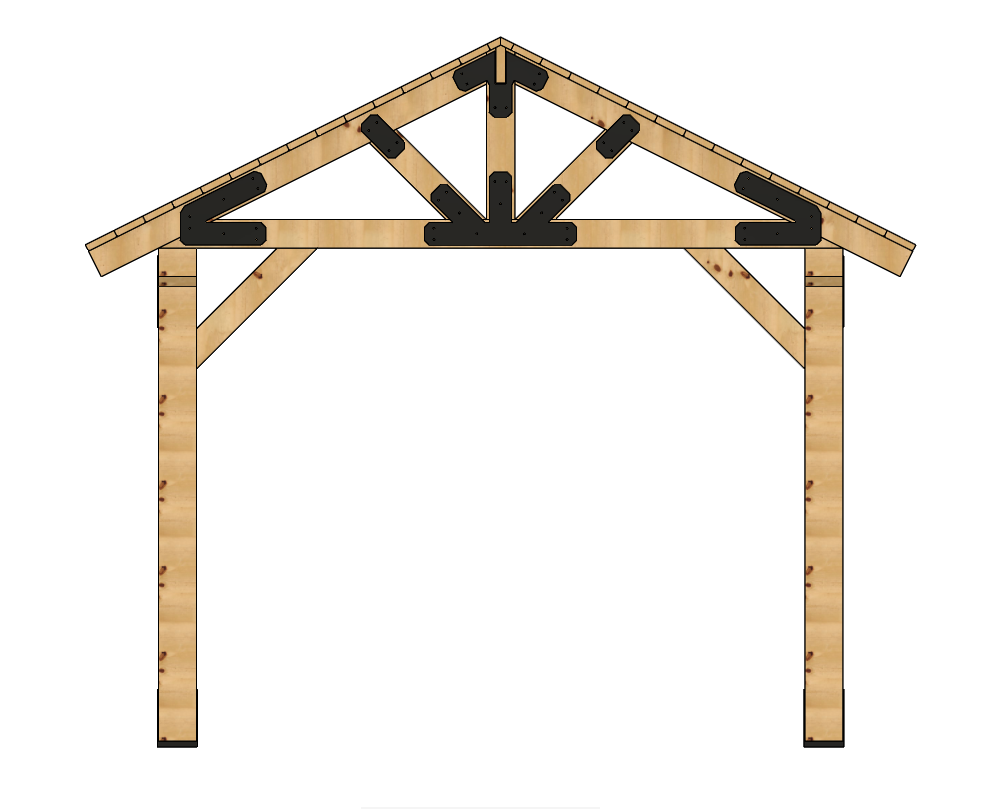

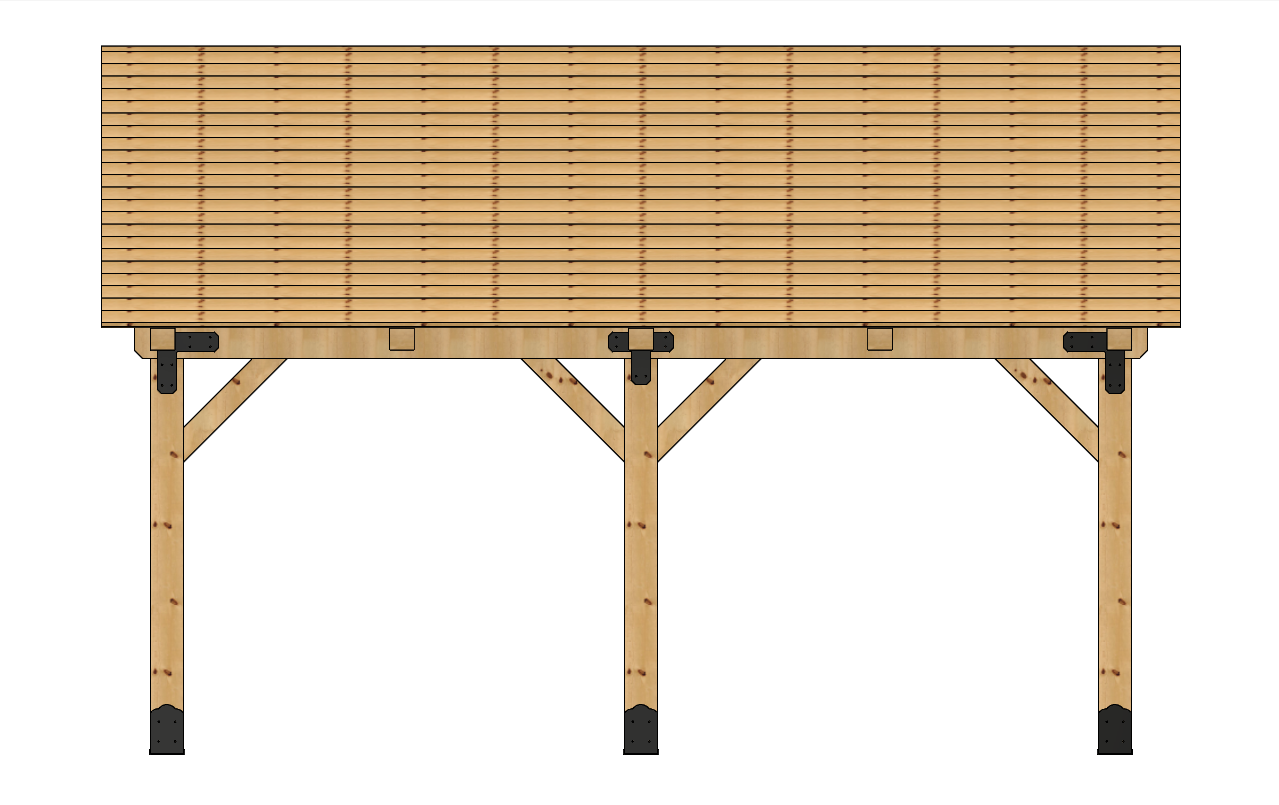

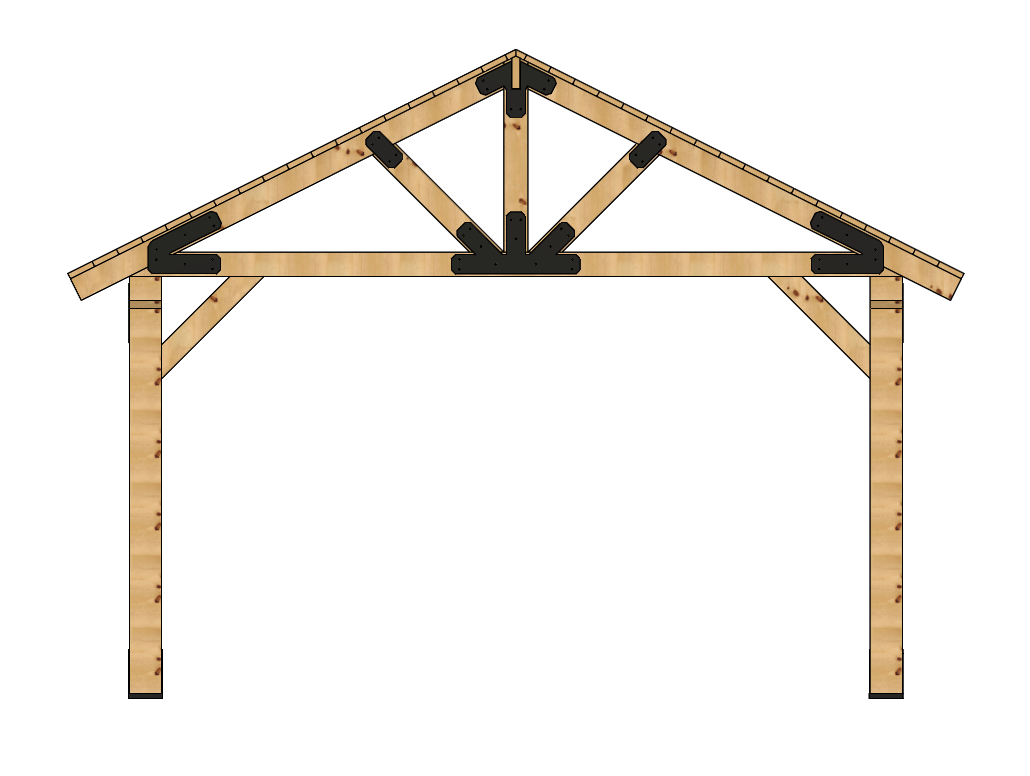

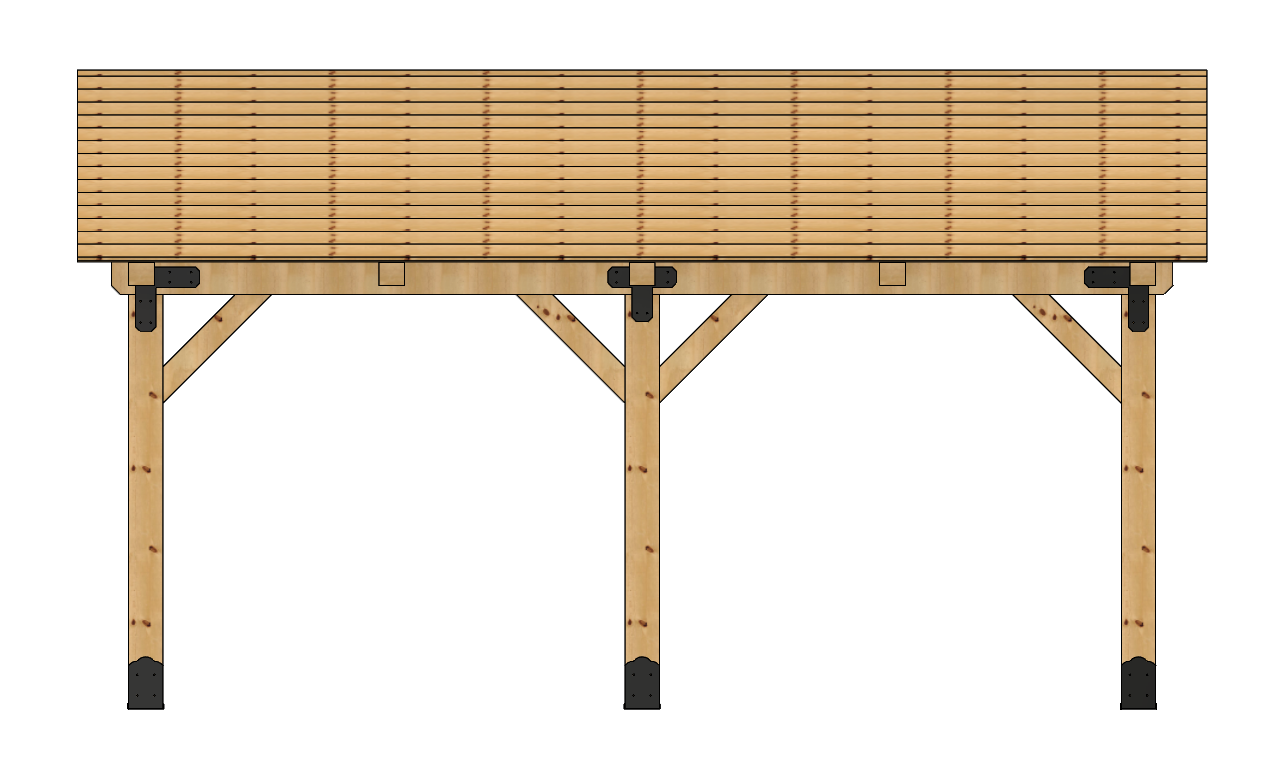

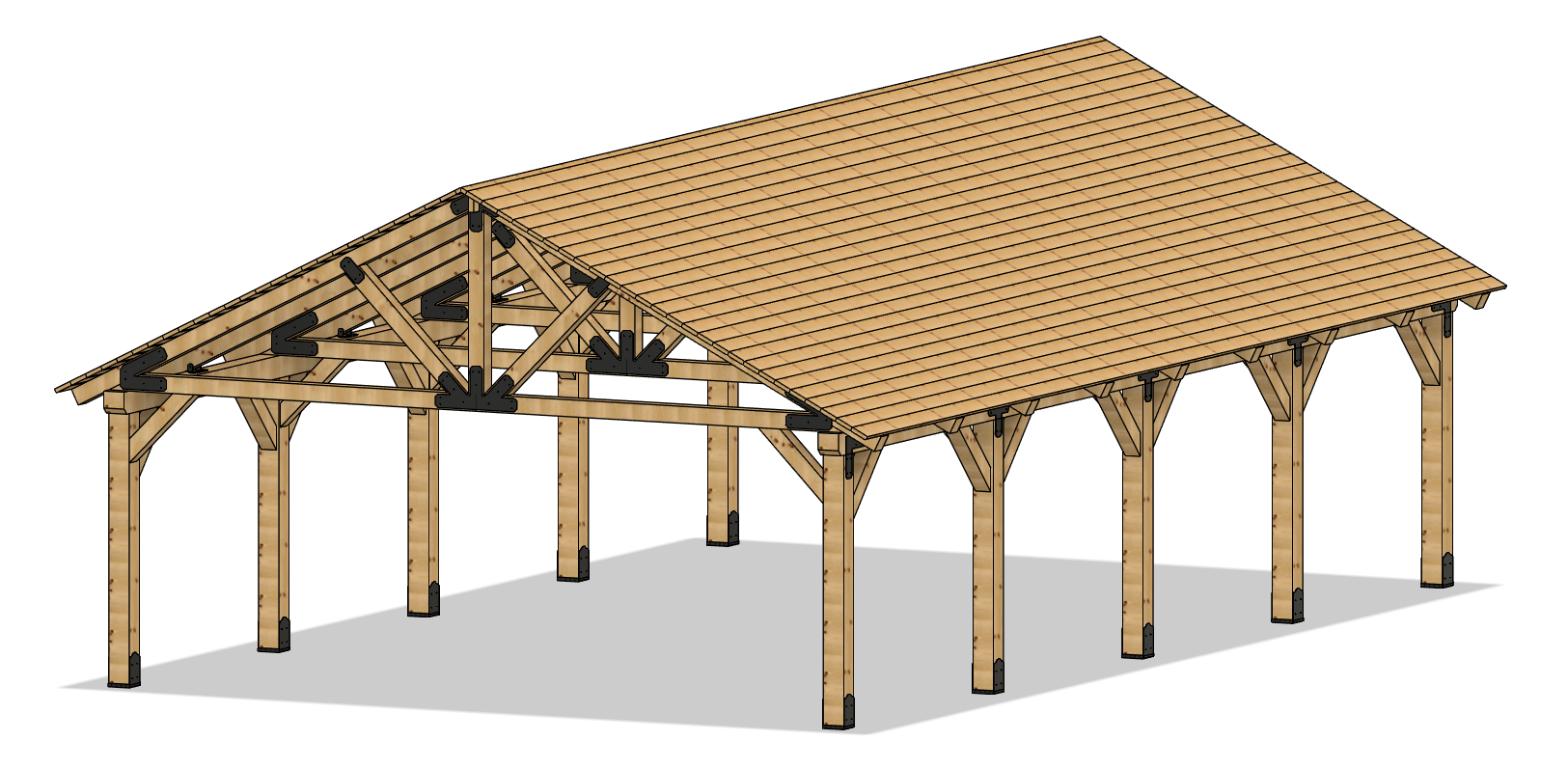

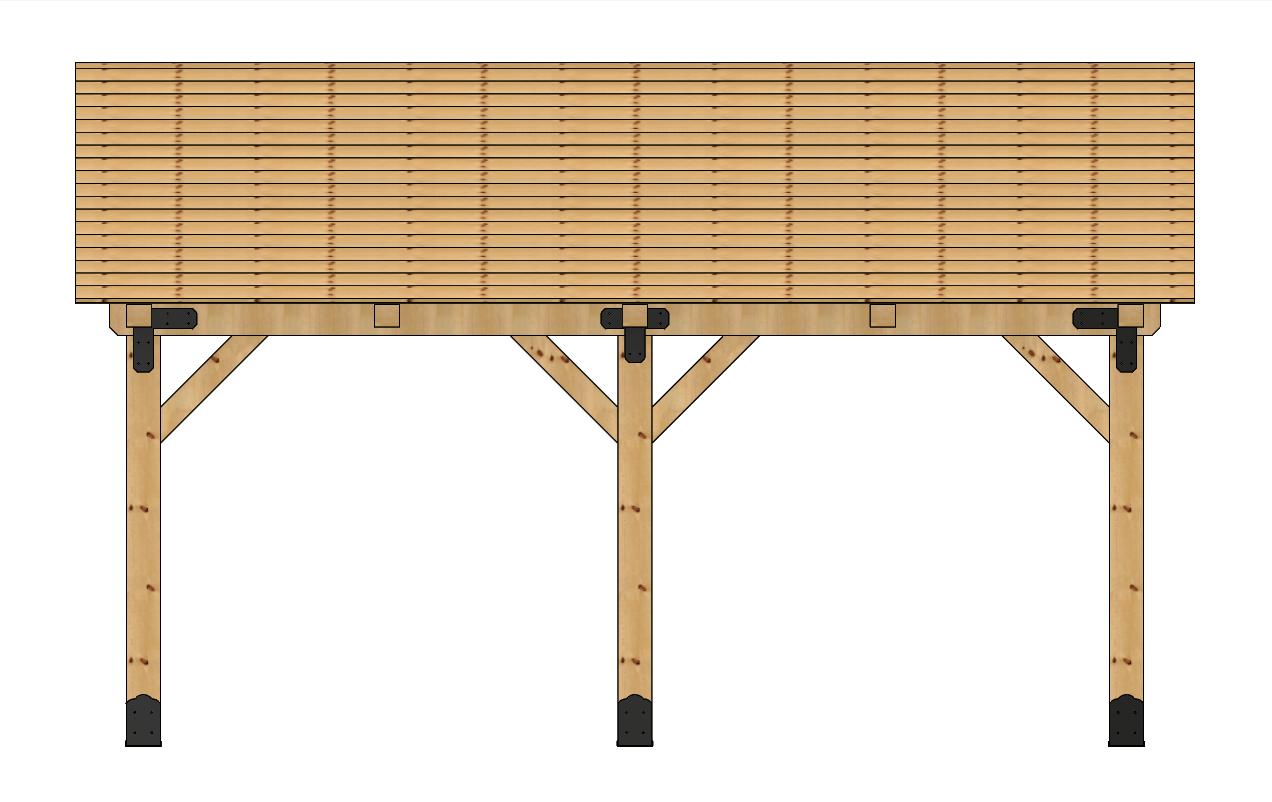

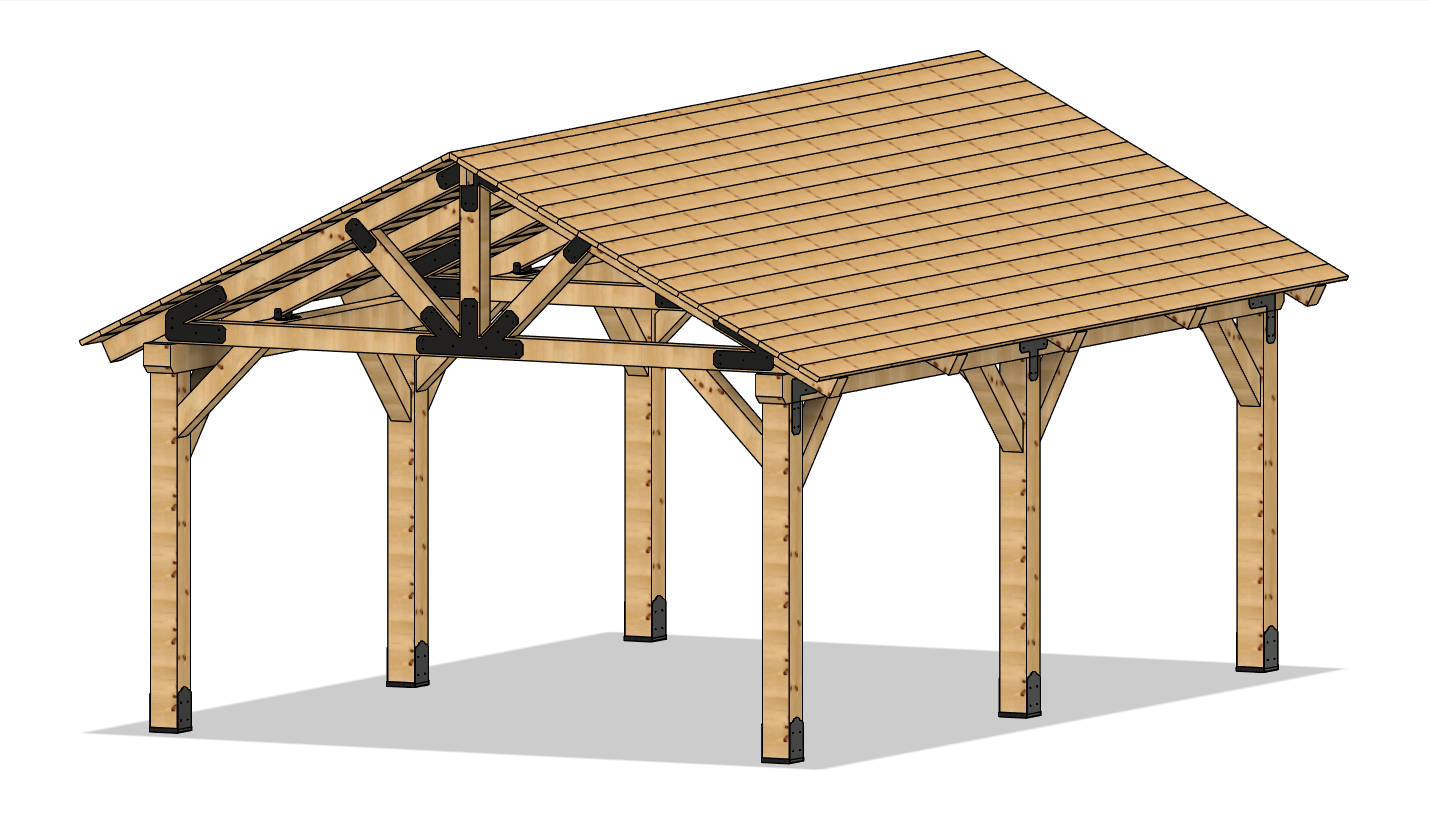

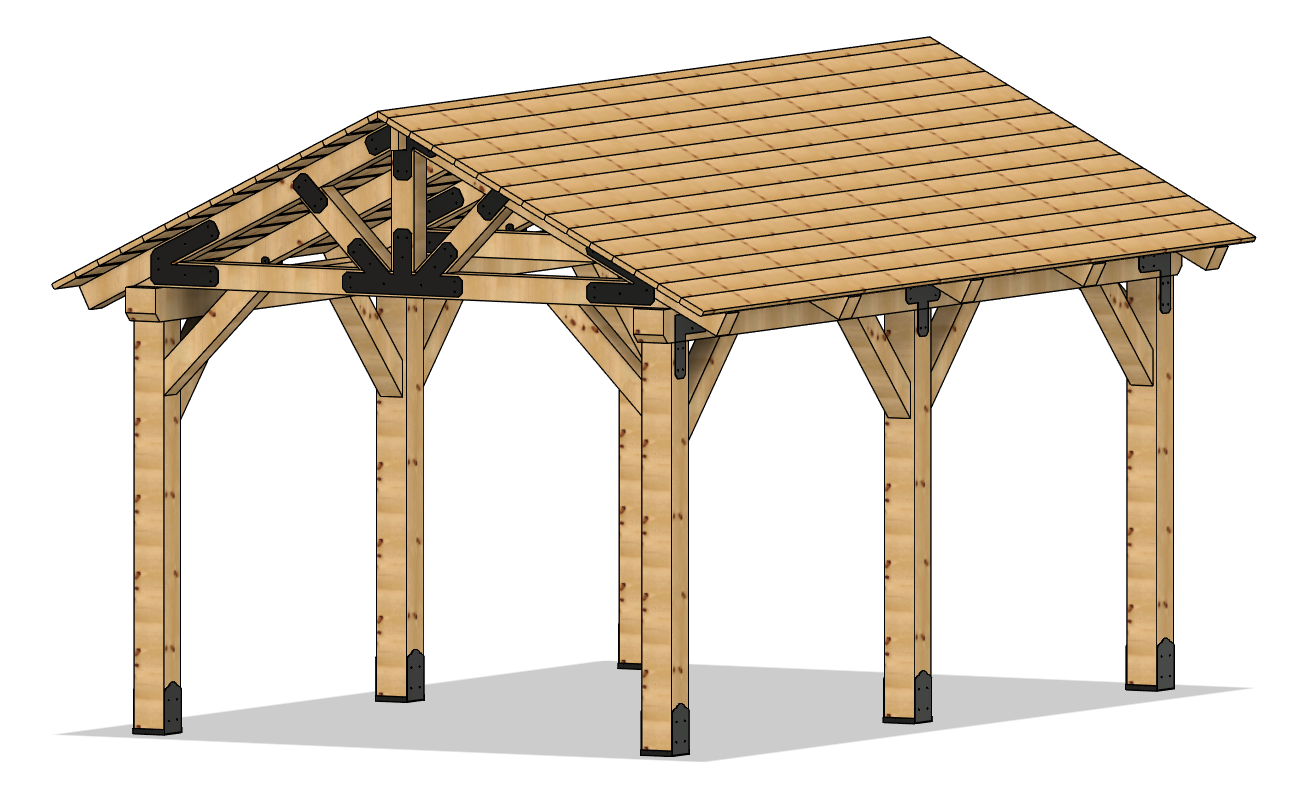

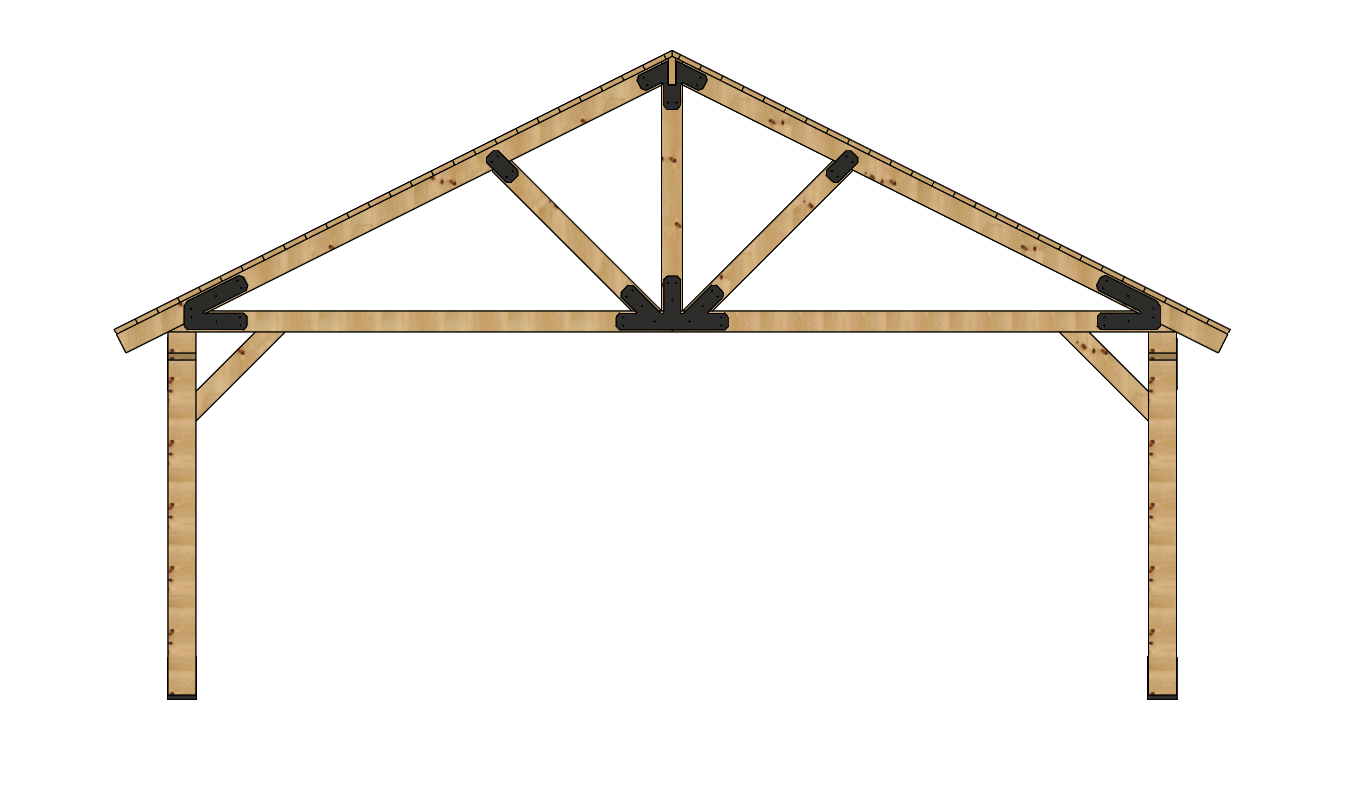

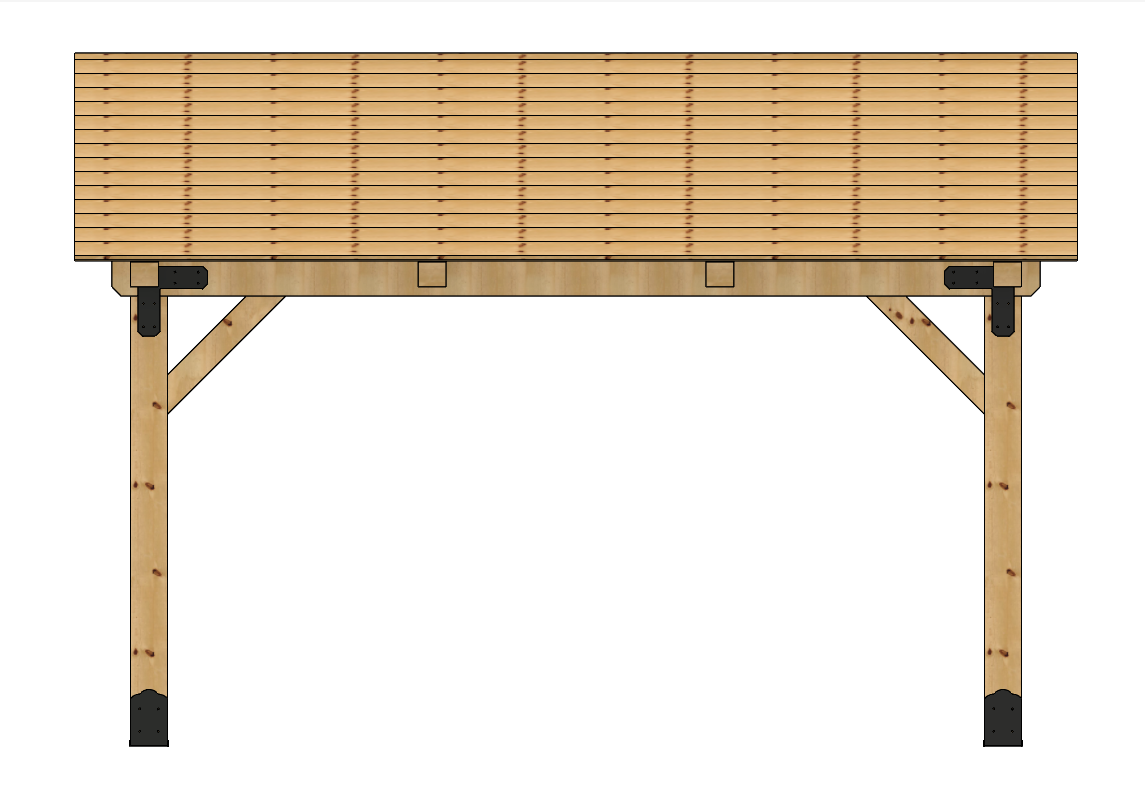

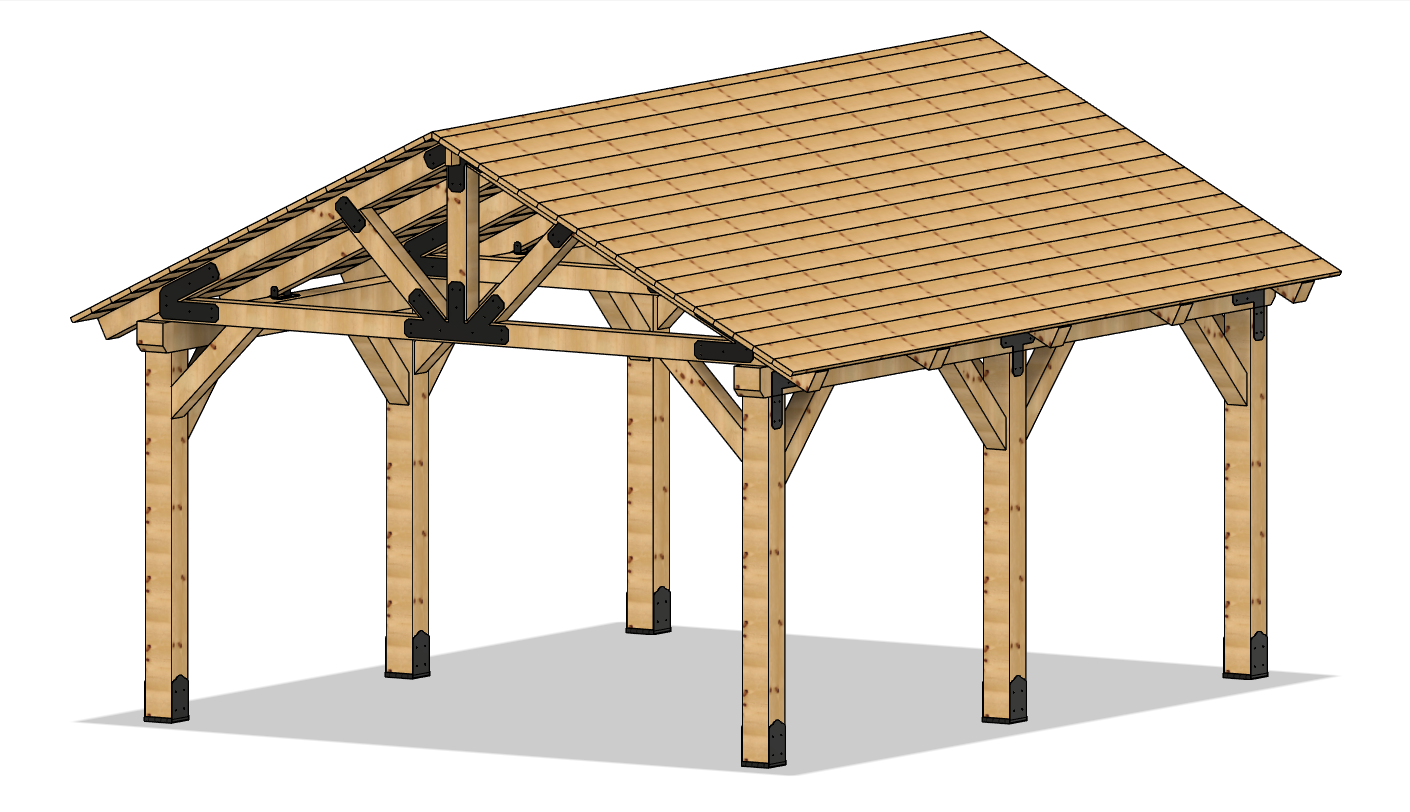

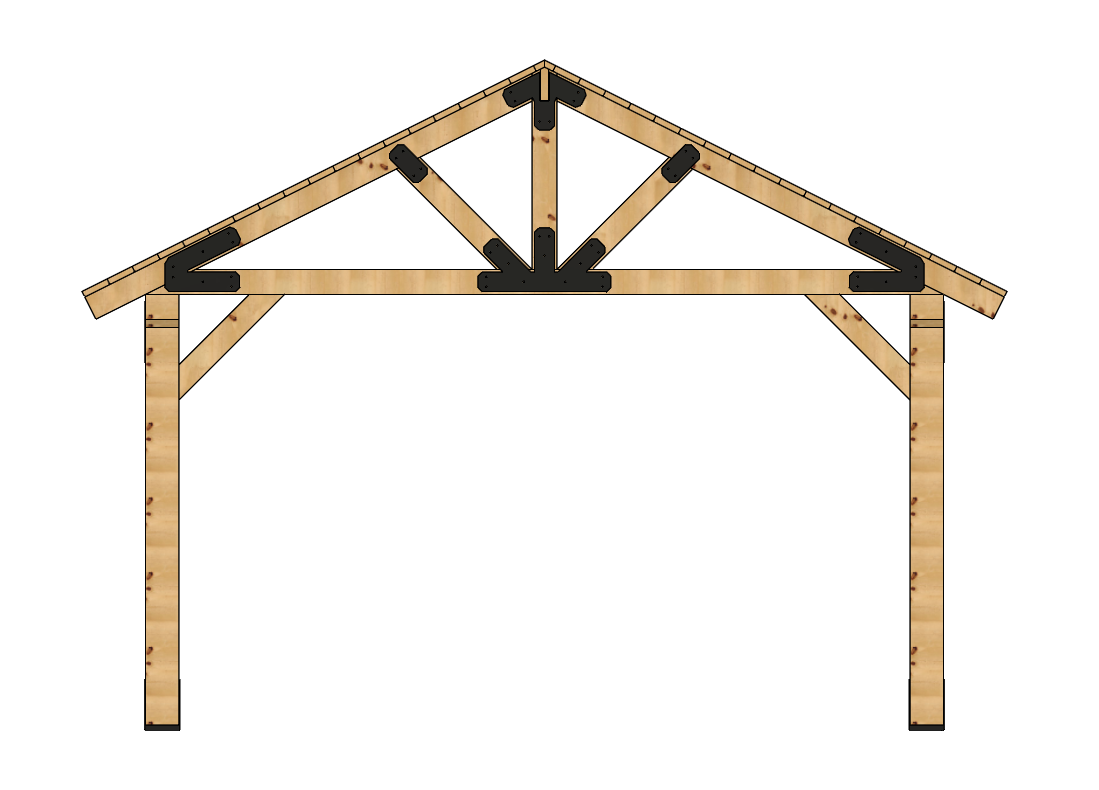

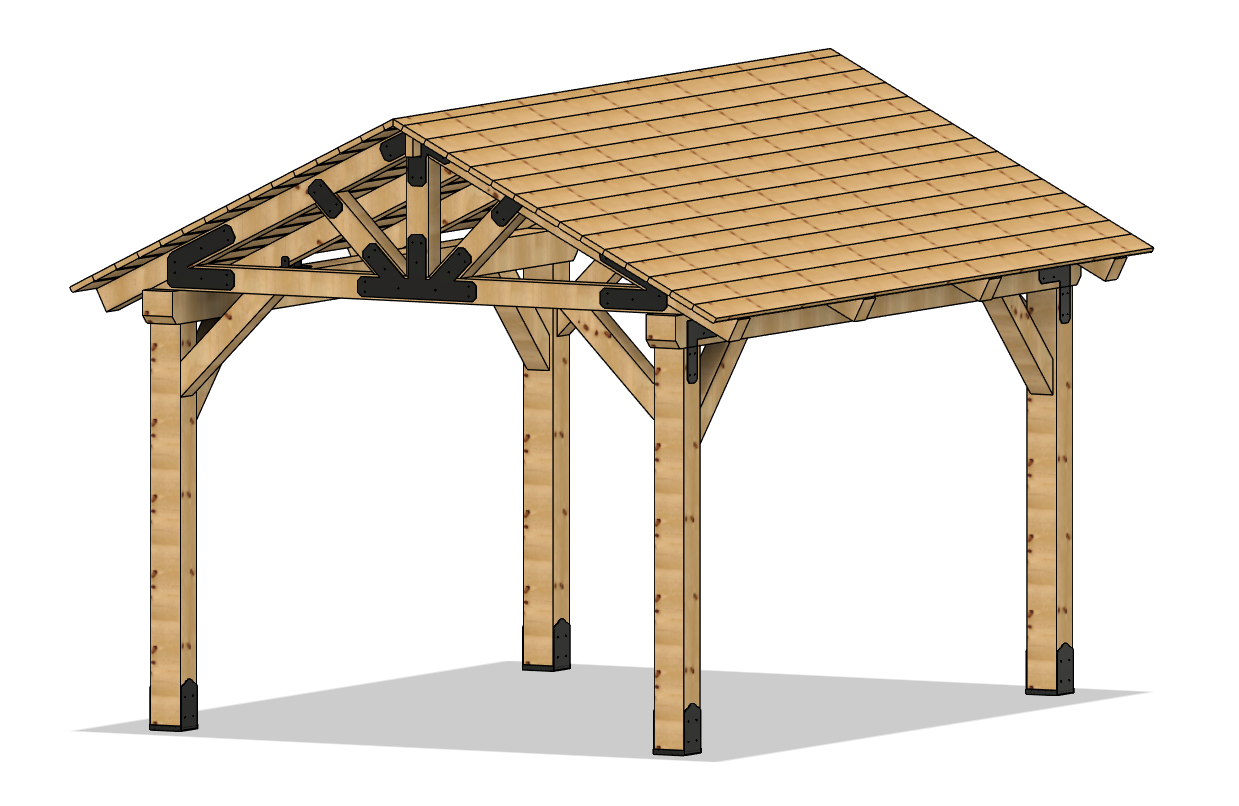

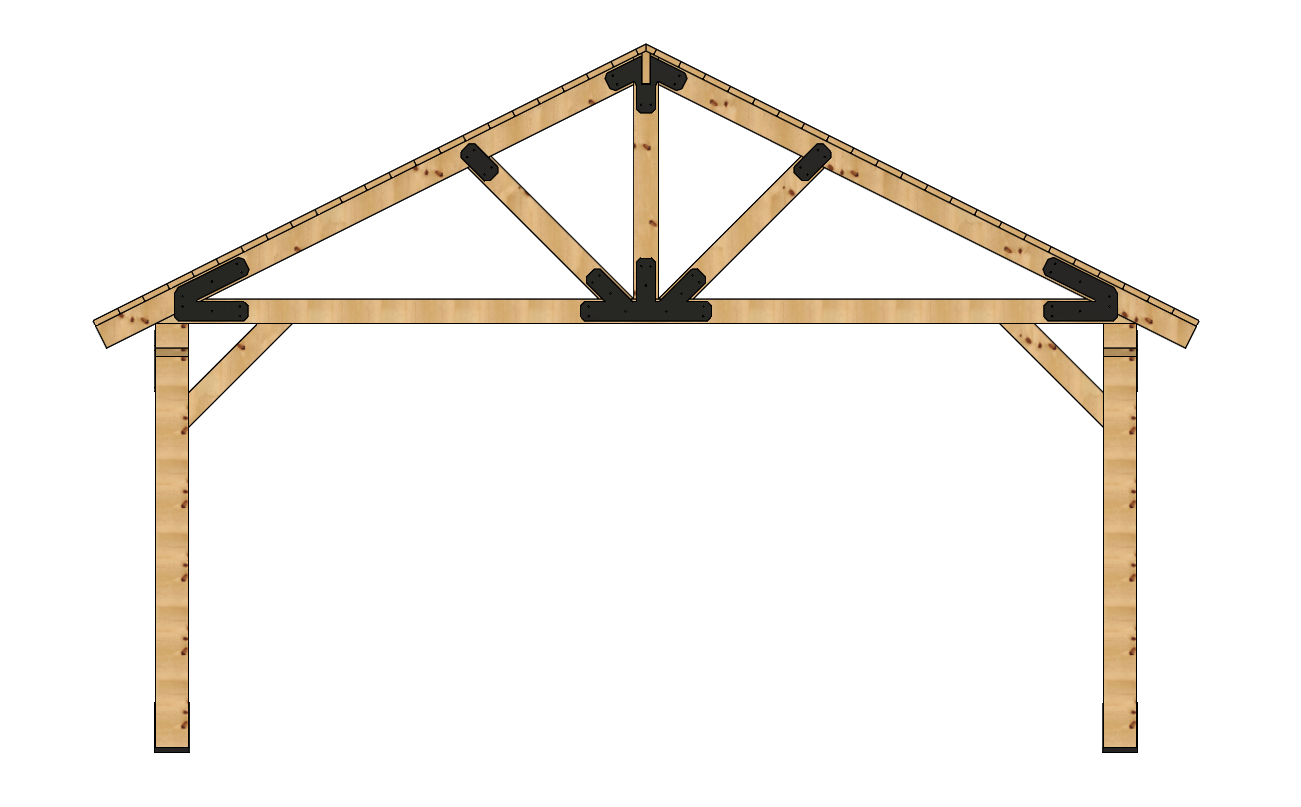

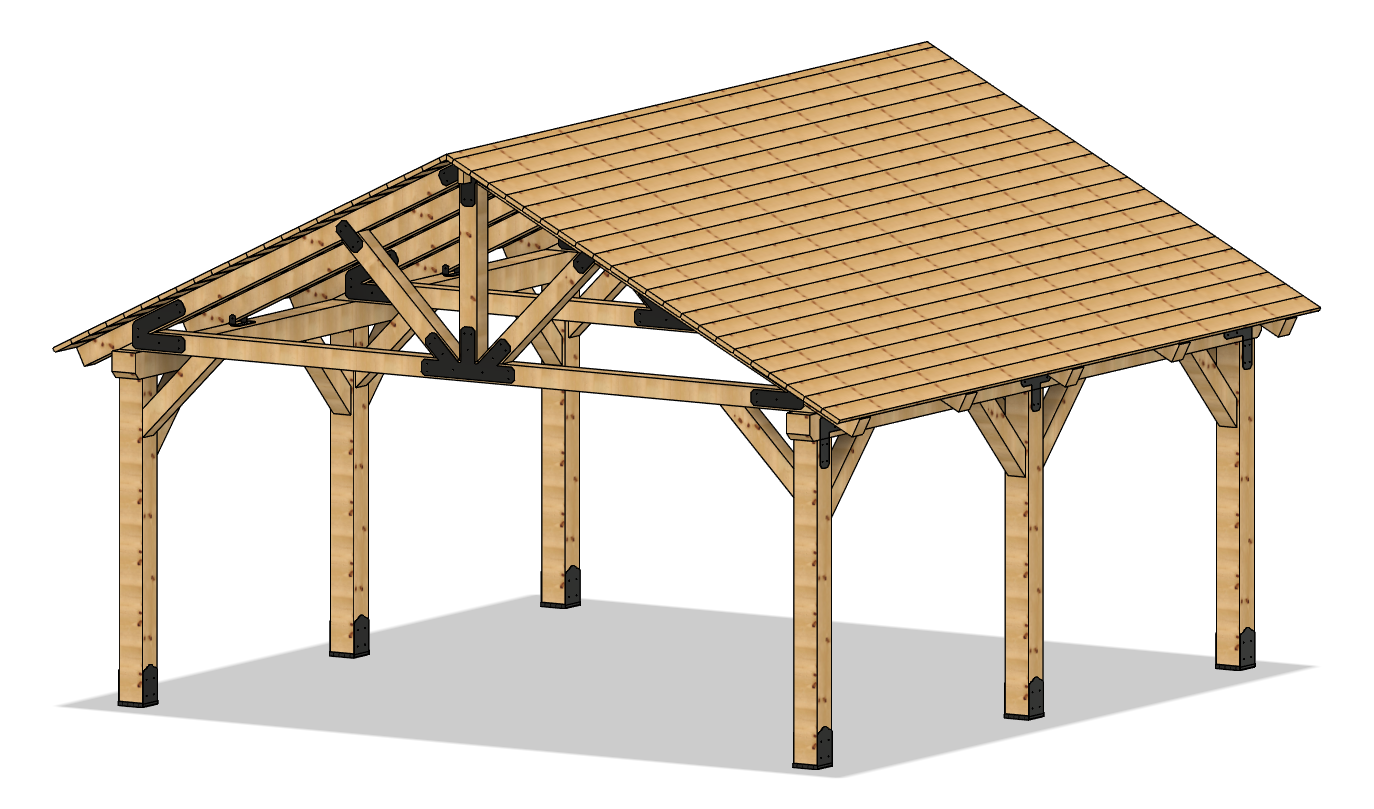

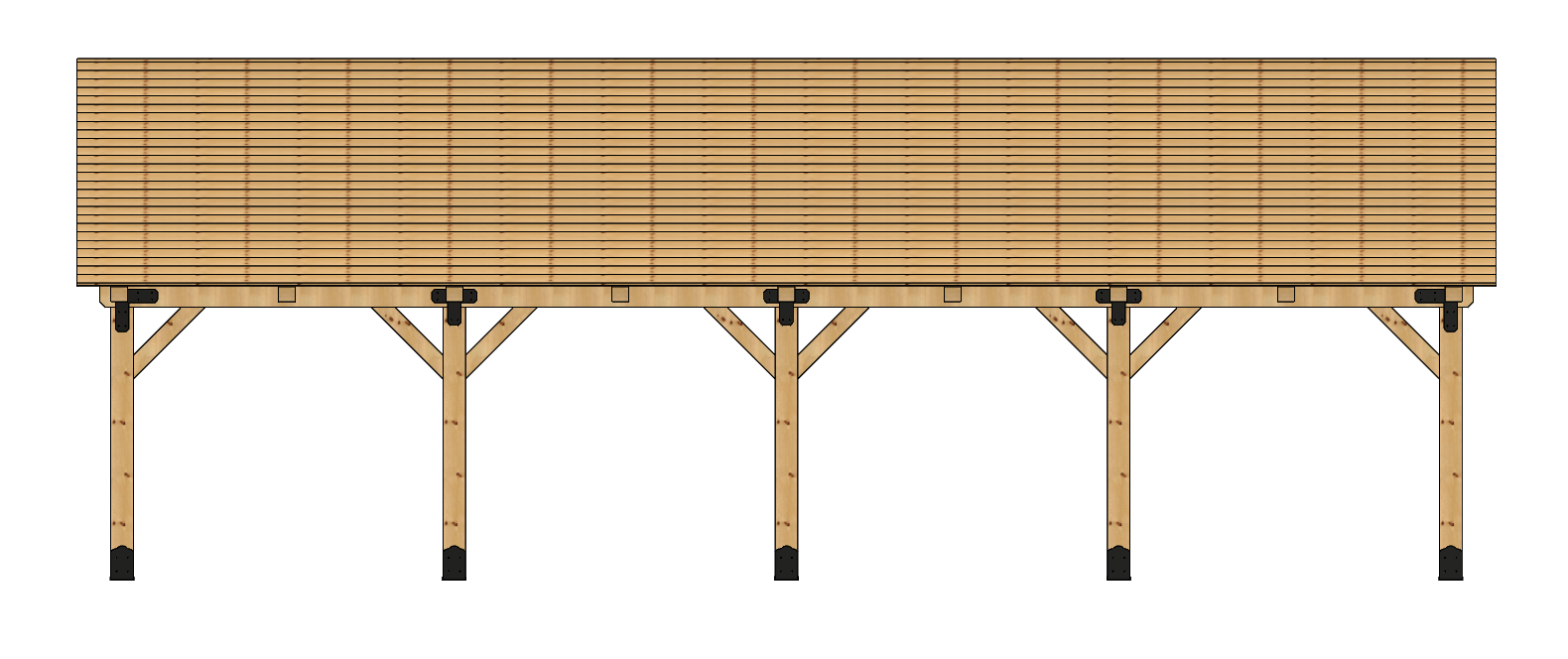

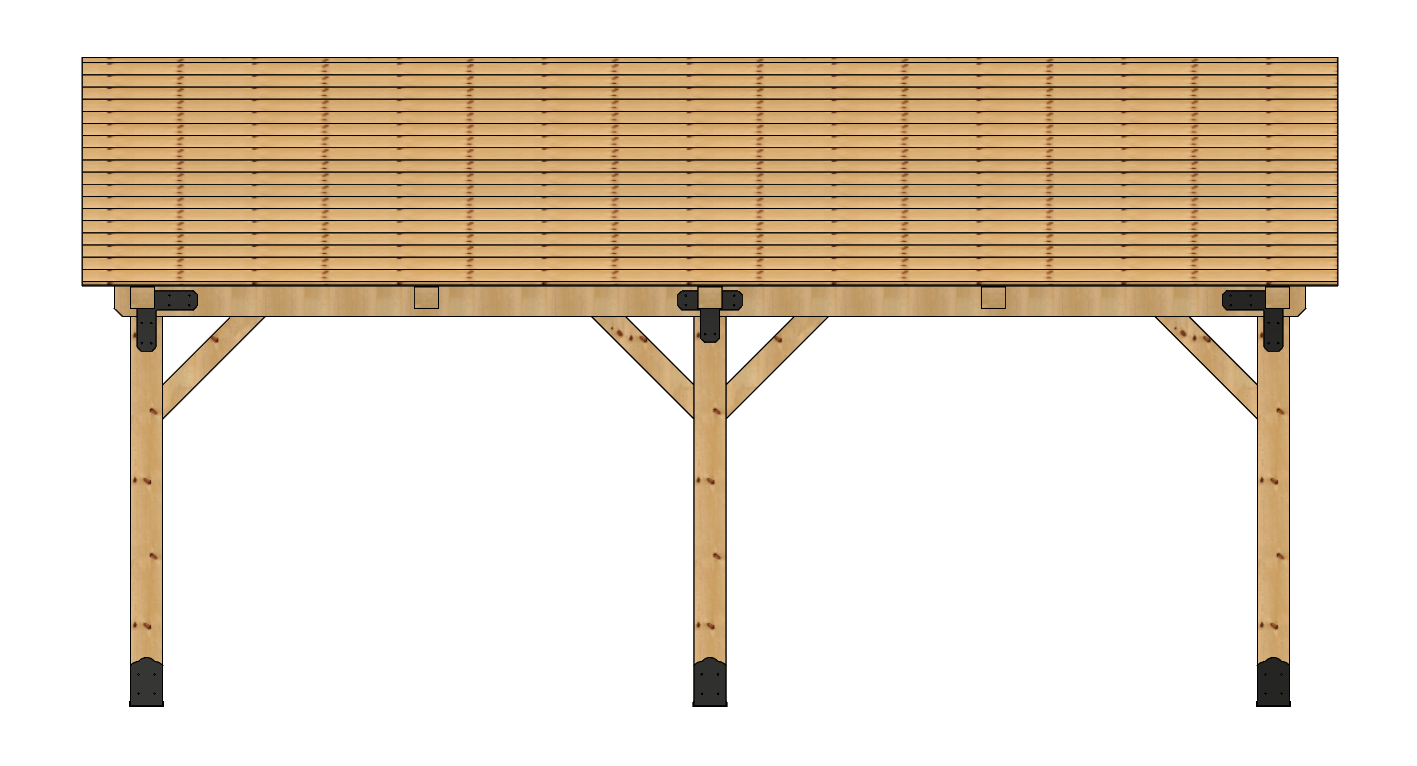

Preview Our Standard Kit Renderings
Browse 3D renderings of our standard pavilion kit sizes to compare proportions, rooflines, and overall scale before requesting a quote.
These 3D previews show our standard kit sizes so you can compare scale and proportions before requesting a quote. They are visual previews, not final engineered drawings.
Disclaimer — Renderings are provided for visual reference only. Final design, proportions, details, roof pitch, materials, colors, and engineering requirements may vary based on the approved quote, selected options, site conditions, and project requirements.
Everything you need to raise it.
Each kit ships pre-cut and pre-fit on pallets with a 3D rendering, post-layout sketch, and written install instructions. Erection is by the homeowner or a local contractor.
Design package
- ●3D rendering w/ measurements
- ●Post-layout footprint sketch
- ●Written install instructions
Pre-cut timber frame
- ●Trusses assembled, ready to set
- ●Rafters matched to top chords
- ●2×8 ridge beam with beam pocket
- ●Headers with decorative chamfer
Posts & connectors
- ●8×8 posts, pre-fit
- ●Post bases & risers, powder-coat or DTM
- ●All lags & fasteners (excl. Redhead anchors / T25 screws)
T&G decking
- ●2×8 #1 SYP T&G — 1.5" thick × 6.75" face
- ●Pre-cut to rafter spacing
- ●Same-pallet delivery
Spec & engineering
- ●6/12 roof pitch · 1' overhang
- ●Stamped engineering available
- ●Stamped footing design available
Freight-ready
- ●Palletized for nationwide freight
- ●Coordinated delivery scheduling
- ●Offload coordination + driver contact
Default member sizing for every standard kit.
Standard pavilion kits use our default member sizing unless custom sizing is selected at quote. All dimensions below are actual heavy-timber lumber sizes.
Custom member sizing available on request at the quote step.
Get a ballpark delivered price.
Configure a standard kit and we'll estimate freight to your ZIP. Final quotes are confirmed with stain/roof color selection and an exact freight rate.
Best for: Family dining & lounge
- Base cypress kit · 16×20
- $19,200
- Stain
- —
- Roofing
- —
- Plating
- —
- Freight
- Enter ZIP
Freight is calculated from Henderson, TN at $4/loaded mile (≤1,000 mi) and $3/loaded mile beyond. Final freight confirmed at quote. Pickup available at our Henderson, TN shop at no freight cost.
Transparent pricing.
Base kits include structural materials. Stain, roofing, engineering, and steel plating are add-ons priced per size.
| Size | Best for | Cypress | Cedar | Pine | Stain | Roofing | Plating | |
|---|---|---|---|---|---|---|---|---|
| 12×16 | Compact patio / spa cover | $11,520 | $11,520 | $9,600 | +$1,200 | +$1,500 | +$1,800 | Quote → |
| 12×20 | Driveway / hot-tub pavilion | $14,400 | $14,400 | $12,000 | +$1,500 | +$1,900 | +$2,900 | Quote → |
| 16×20 | Family dining & lounge | $19,200 | $19,200 | $16,000 | +$2,000 | +$2,500 | +$2,900 | Quote → |
| 16×24 | Outdoor living + grill area | $23,040 | $23,040 | $19,200 | +$2,400 | +$2,900 | +$2,900 | Quote → |
| 20×20 | Poolside cabana | $24,000 | $24,000 | $20,000 | +$2,500 | +$3,200 | +$2,900 | Quote → |
| 20×30 | Entertainment / outdoor kitchen | $36,000 | $36,000 | $30,000 | +$3,700 | +$4,500 | +$3,800 | Quote → |
| 24×40 | Events / large outdoor living | $57,600 | $57,600 | $48,000 | +$5,800 | +$6,300 | +$4,800 | Quote → |
Standard materials: 4×7 trusses & rafters · 4×7 knee braces · 8×8 posts · 5×12 headers · 2×8 T&G decking. 6/12 pitch · 1' overhang.
Tax & shipping not included. Lead times subject to change. Footing anchors and decking fasteners not included unless noted.
What size pavilion do I need?
A quick reference for how our standard footprints typically get used. Most customers land between 16×20 and 20×30 — but the right size depends on your furniture, site, and how you'll live in the space.
Best for compact patios, grill stations, small seating areas, and smaller backyards.
Good for outdoor dining, small lounge areas, and covered grill spaces.
A popular backyard entertainment size with room for seating and dining.
Good for outdoor kitchens, dining tables, and larger seating areas.
A strong square footprint for poolside spaces, firepit areas, or larger gathering zones.
Ideal for outdoor kitchens, poolside entertainment, large seating layouts, and multi-use backyard spaces.
Best for estate properties, ranches, event spaces, commercial gathering areas, and large outdoor living projects.
What's included. What's not.
A typical Timber Frame Solutions pavilion kit ships pre-cut, labeled, and palletized. Here's what comes in the crate and what is normally handled by your installer or supplied by others.
In a typical kit
- Pre-cut heavy timber frame components
- Fully assembled trusses where applicable
- Posts
- Headers and beams
- Rafters
- Ridge beam where applicable
- 2×8 Southern Yellow Pine tongue-and-groove roof decking when included in the selected package
- Steel connector plates when selected or included in the package
- Post bases when selected or included in the package
- Most structural fasteners
- 3D rendering after deposit
- Post layout / footprint sketch
- Written installation guidance
- Palletized shipment preparation
Unless added or supplied by others
- Local installation labor
- Footings or concrete work
- Permits
- Engineering unless purchased as an add-on
- Roofing unless selected as an add-on
- Stain unless selected as an add-on
- Electrical
- Fireplaces
- Outdoor kitchens
- Site preparation
- Equipment for unloading
- Anchor bolts or jobsite-specific fasteners where applicable
- T25 decking screws where applicable
Note — Every project is quoted based on the selected structure, species, add-ons, delivery location, and project requirements.
Customize your kit.
Roofing
29-gauge metal rib in Black, Galvalume, Barn Red, Cocoa Brown, Charcoal Gray, or Burnished Slate — or architectural shingles in Shakewood, Pewter Gray, Slate, Charcoal, Barkwood, or Weathered Wood.
Stain
PPG Flood semi-transparent stain. Oxford Brown, Sierra, Timberline, Cedar Natural, Redwood, and White Birch.
Plating
Post bases, truss plating, and additional connectors (Ts/Ls, rafter ties, standard angles). Cut in our shop, powder-coated or DTM finish.
Engineering
Stamped 3D rendering + load computations for your geographic area: $2,250. Stamped footing design: additional $2,000.
Palletized & shipped nationwide.
Materials are palletized for freight. We coordinate the shipment; clients are responsible for providing equipment to offload at delivery. Driver and client contact details are confirmed in advance.
Palletized shipment
All timber, T&G, and hardware shrink-wrapped on freight-ready pallets.
Nationwide freight
Curbside common-carrier freight to all 48 states. Quoted up front.
Customer offload
Client provides forklift, skid-steer, or crew to offload at delivery.
Lead times
Typical production: 4–8 weeks after deposit. Stain & engineering add time.

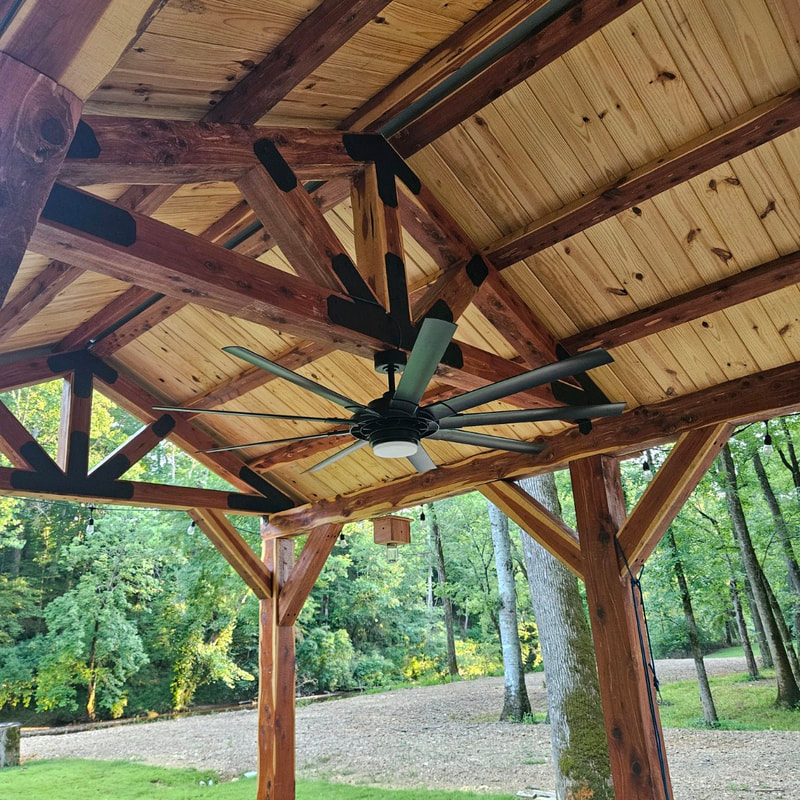

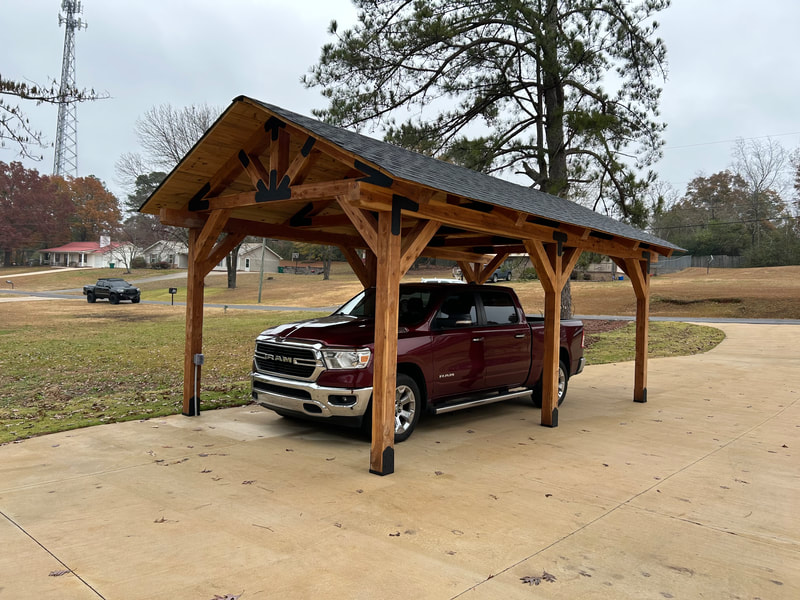

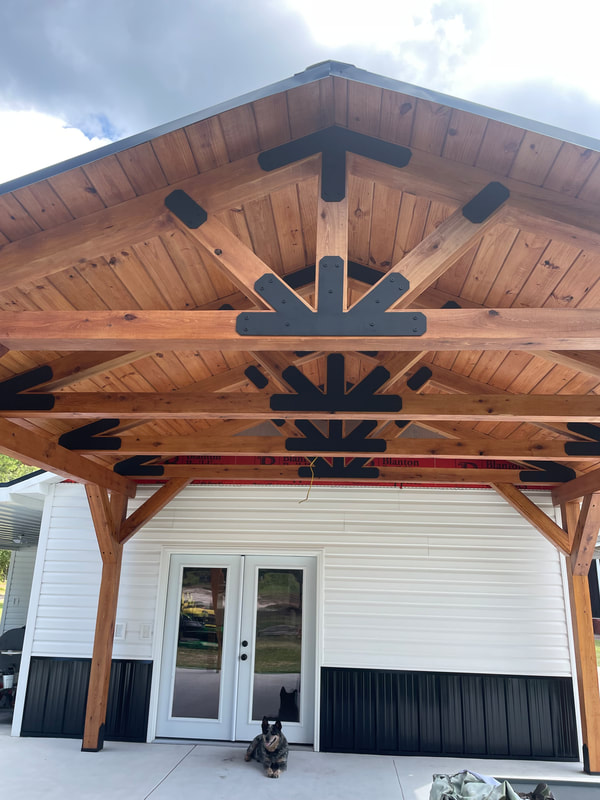

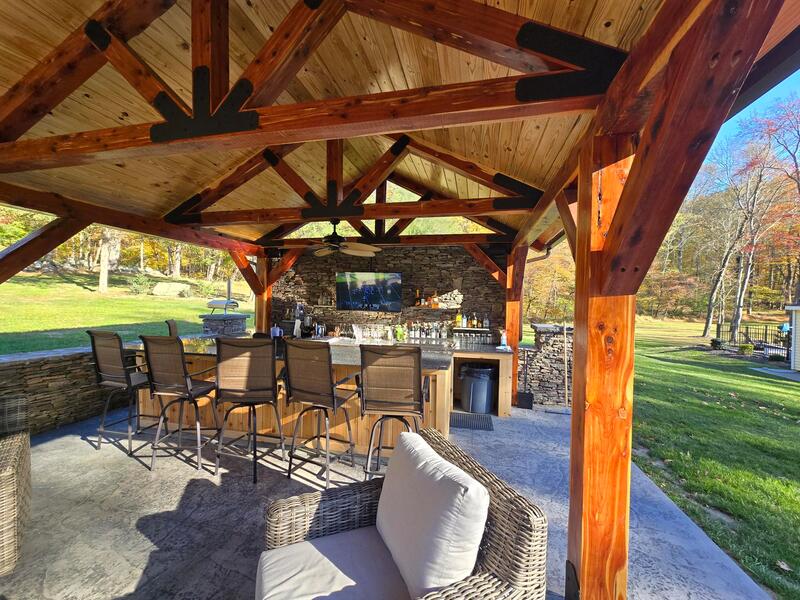

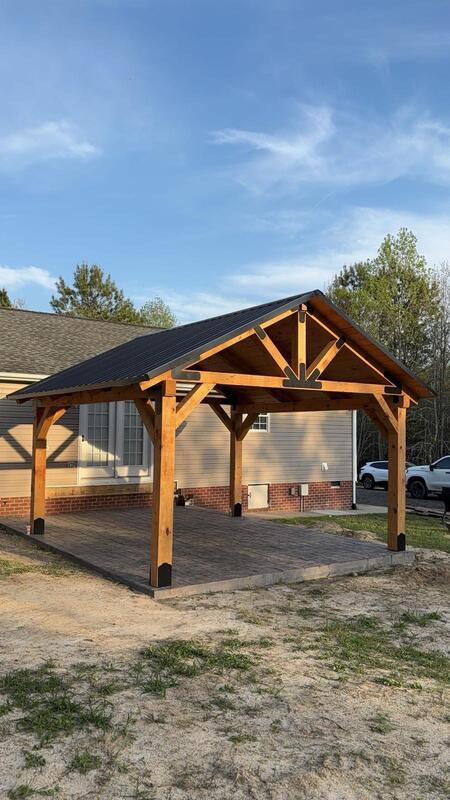

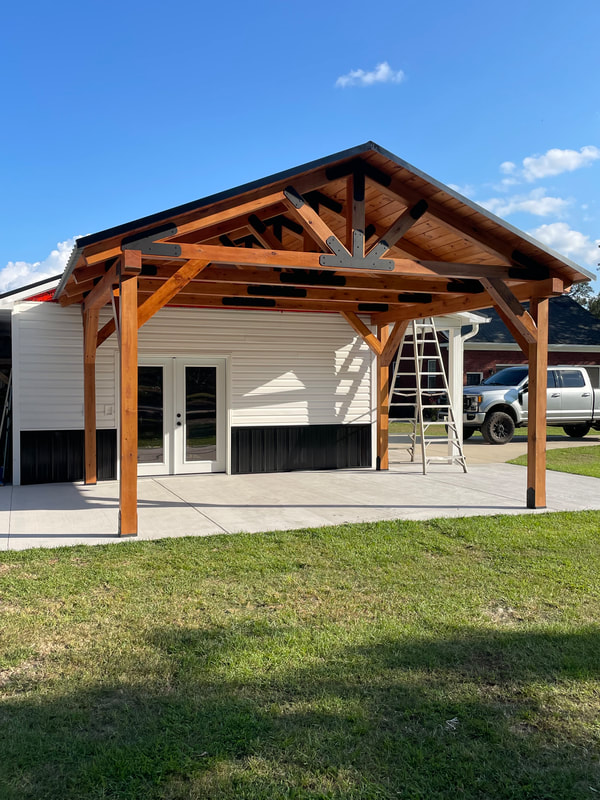

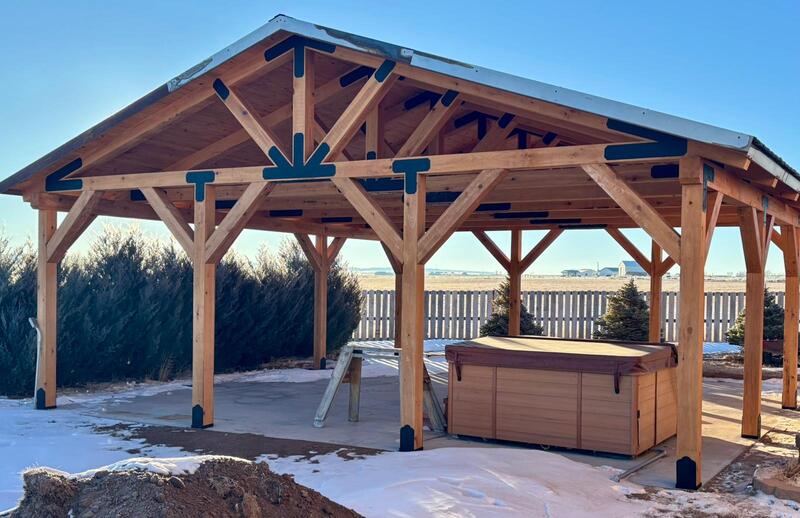

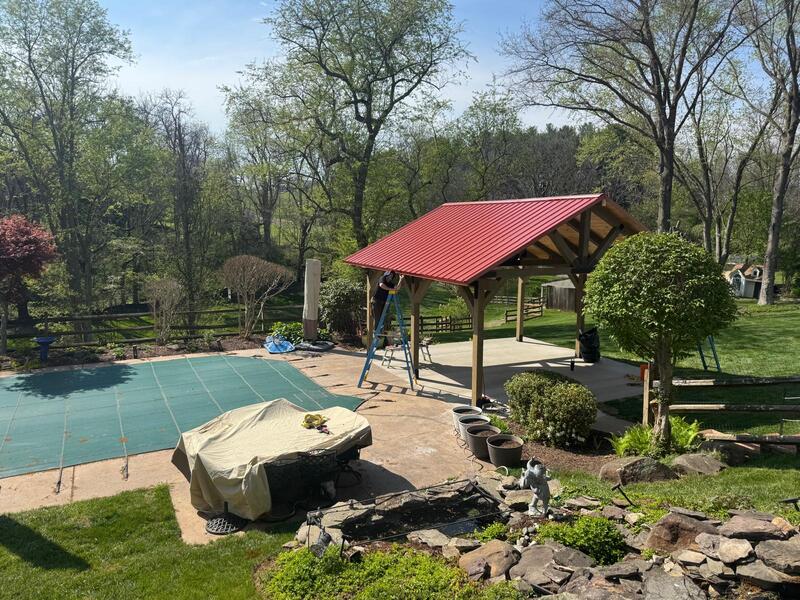

Kits in the field.
All heavy timber is supplied fresh-cut and green. As the wood acclimates and dries, checking, minor twisting, and dimensional movement will occur. These are natural characteristics of solid timber and do not affect structural integrity — they are not considered defects and are not covered under warranty.
Stain color samples and prior project photos are for reference only. Final appearance will vary based on species, grain, moisture, absorption, and on-site lighting. We cannot guarantee an exact color match.
Standard kits are proportioned to typical Tennessee and surrounding-region loading. If site-specific engineering is required, stamped drawings + load calculations are $2,250, with stamped footing design an additional $2,000.
Plan a structure that outlives you.
Tell us about your site. We'll come back with a preliminary kit scope and budget within one business day.
- 01Cypress, Cedar, or Southern Yellow Pine — pre-cut & pre-fit
- 02In-house steel connector plates (powder coat or DTM)
- 03Palletized & freight-shipped nationwide
Interested in becoming a dealer?
Sell Timber Frame Solutions pavilion kits with dealer pricing, branded sales material, and nationwide drop-shipping.
View Pavilion Dealer ProgramCommon questions.
What's standard sizing?
+
Standard kits run from 12×16 up to 24×40. Anything larger requires a custom quote and engineering. Every kit ships with a 6/12 roof pitch and a 1' overhang on all sides.
What's included in the base kit?
+
Pre-cut and pre-fit lumber: fully assembled trusses, posts with powder-coated or DTM-painted post bases and risers, decorative chamfered headers, 2×8 ridge beam with beam pocket, matching rafters, and 2×8 #1 SYP tongue-and-groove decking. All lags and fasteners are included except 5/8" Redhead anchor bolts and T25 decking screws.
Do you install?
+
No. Our kits are pre-fabricated post-and-beam packages designed to be erected by the homeowner or a local contractor. Pre-fitting drastically reduces install cost and timeframe.
Do you handle fireplaces, kitchens, or electrical?
+
Those integrations are added by your local trades. We can provide consultation but it's not part of our build.
How is shipping handled?
+
Materials are palletized and shipped freight nationwide. We coordinate the freight; the client provides equipment to offload at delivery. Driver and client contact details are confirmed in advance.
What about engineering?
+
Standard kits are proportioned to typical Tennessee/Mid-South loading per industry standards for heavy timber. Stamped 3D renderings + load calcs for your geographic area are $2,250. Stamped footing design is an additional $2,000.
